Earthing Electrodes

Pipe-style earthing electrodes for heavy machinery and infrastructure grounding

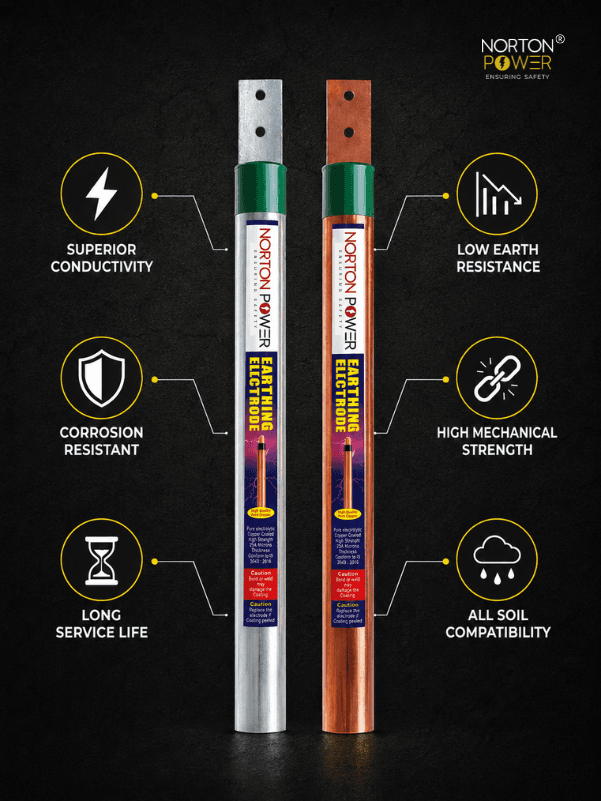

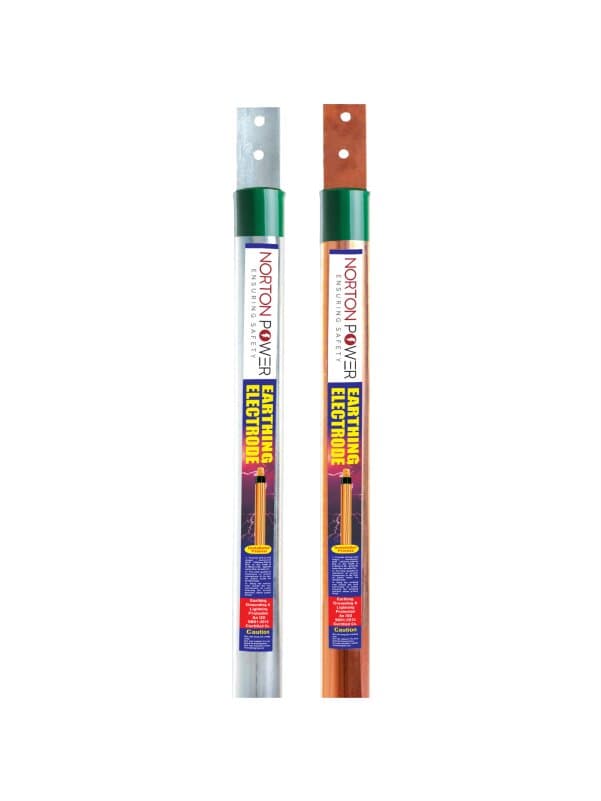

Earthing electrodes are pipe-form grounding solutions designed for installations requiring large surface area and high fault current capacity. Available in copper-bonded or zinc-galvanized variants, Norton Power electrodes are manufactured from medium and heavy quality low carbon mild steel pipe in diameters from 50mm to 100mm — the configurations specified in government tenders and large industrial projects.

Each electrode comes with a clamp or terminal at the top for connecting earthing strips or wire, and is designed to IS 3043:1987 specifications. The pipe form provides significantly more soil contact than rod electrodes, making these the right choice when fault currents are high or when soil resistivity demands maximum surface area.

Request a quote WhatsApp sales

Click to zoom

Features

Available in copper-bonded or zinc-galvanized finish per project requirement
Standard diameters: 50mm, 60mm, 80mm, 100mm
Lengths from 1 meter to 3 meters
Built-in clamp/terminal at top for direct connection to earthing strips
Optional integrated funnel for highly conductive compound application
Designed to IS 3043:1987 standard for earthing practice

Why choose Norton Power

Larger surface area than rod electrodes — handles higher fault currents reliably
Compatible with both copper-bonded and galvanized finishes for budget flexibility
Funnel variant simplifies installation of earth enhancing compound
Stable resistance to ground with minimal seasonal variation
Suitable for both new installations and retrofit projects

Specifications

Core material	Medium / heavy quality low carbon mild steel pipe
Finish	Copper bonded OR zinc galvanized
Diameter	50, 60, 80, 100
Length	1, 2, 3
Terminal	Standard clamp / terminal at top for strip connection
Funnel option	Available on request for compound installations
Standard	IS 3043:1987 (Code of Practice for Earthing)

Standards compliance

IS 3043:1987IEEE 80IEC 62561

Applications

Heavy industrial machinery and motor grounding

Power generation and transmission infrastructure

Petrochemical and oil refinery installations

Cement plants and steel mills

Sugar and paper manufacturing facilities

Large commercial buildings with high electrical loads

Models & variants

Ø 50 mm · lengths: 1, 2, 3 m
Ø 60 mm · lengths: 1, 2, 3 m
Ø 80 mm · lengths: 1, 2, 3 m
Ø 100 mm · lengths: 1, 2, 3 m

Frequently asked questions

When should I use a pipe electrode vs a rod electrode?

Pipe electrodes are preferred when fault currents are high or soil resistivity is poor — the larger surface area provides better contact with the earth. Rod electrodes are sufficient for most distributed grounding needs.

What's the difference between copper bonded and galvanized electrodes?

Copper bonded electrodes offer 40+ year service life and lower long-term resistance. Galvanized electrodes have a lower upfront cost but typically need replacement within 8-12 years due to corrosion.

Do you provide installation accessories with the electrode?

Yes. Electrodes ship with the standard clamp/terminal. We can supply complete kits including earth enhancing compound, pit covers, and connecting strips on request.
