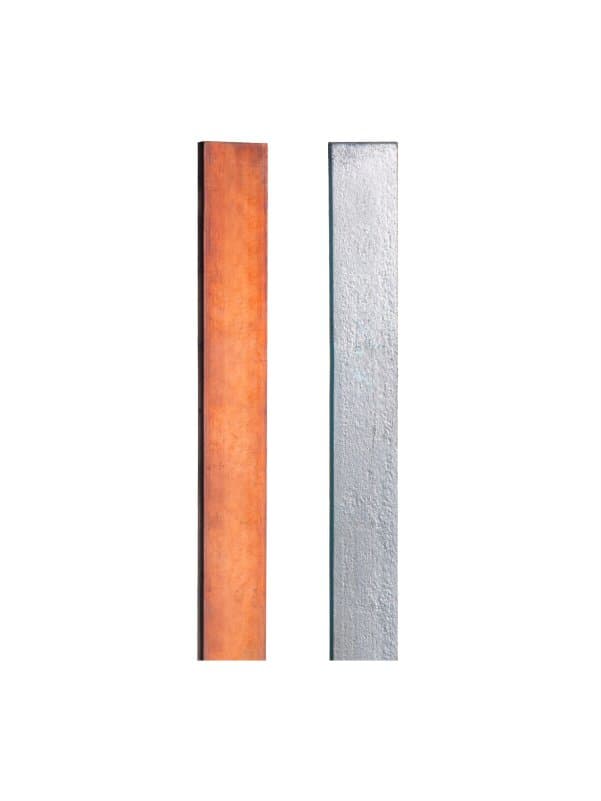

Earthing Strips

Copper and galvanized iron earthing strips for grid systems and equipment bonding

Earthing strips form the connection network in any grounding system — running from electrode to electrode, electrode to equipment, and electrode to lightning protection. Norton Power manufactures both copper and galvanized iron strips through an electroplating process that uses premium chemicals and high-purity copper or zinc billets.

Available in widths from 25mm to 75mm and thicknesses from 3mm to 10mm, with lengths up to 18 feet (longer on request), Norton Power strips meet the dimensional and conductivity requirements specified in IS 3043 and standard utility tenders. Surface finish is consistent and pitting-free — important for both visual inspection compliance and long-term contact resistance.

Request a quote WhatsApp sales

Click to zoom

Features

Available in copper or galvanized iron finish
Standard widths from 25mm to 75mm
Thickness options from 3mm to 10mm
Standard length 18 feet, custom lengths on request
Electroplated for uniform finish and corrosion resistance
Compatible with standard earthing accessories (lugs, bolts, clamps)

Why choose Norton Power

Consistent dimensions allow predictable resistance calculations
Smooth surface finish prevents pitting that increases contact resistance over time
Wide range of sizes covers everything from light industrial to substation-scale
Easy to bend and form for routing around equipment
Available in custom lengths to minimize joints in long runs

Specifications

Material	Copper OR Galvanized Iron
Width	25, 32, 40, 50, 65, 75
Thickness	3, 5, 6, 8, 10
Standard length	18 feet (5.5 meters)
Custom length	Available on request
Manufacturing process	Electroplating with premium chemicals and high-purity billets
Standard	IS 3043, dimensional tolerances per IS 1573

Standards compliance

IS 3043IS 1573

Applications

Substation grounding grid networks

Equipment bonding in industrial facilities

Lightning protection down conductors

Control panel and switchgear earthing

Solar plant DC and AC grounding

Building service entrance grounding

Models & variants

25 mm wide × 3 / 5 mm
32 mm wide × 5 / 6 mm
40 mm wide × 5 mm
50 mm wide × 5 / 6 mm
65 mm wide × 5 / 8 mm
75 mm wide × 6 / 10 mm

Frequently asked questions

What size earthing strip do I need for my application?

Sizing depends on fault current and length of run. For typical substations, 50x6mm copper or 75x8mm GI is common. Check IS 3043 sizing tables or share your fault current calculations and we'll recommend the right spec.

Copper or GI — which should I choose?

Copper offers higher conductivity per cross-section and longer life but at significantly higher cost. GI is the standard choice for most distribution and building applications. Substations and critical industrial earthing typically specify copper.
