Earth Enhancing Compound

Graphite-based backfill compound for stable low-resistance grounding

Earth enhancing compound — also called backfill compound — is the conductive material packed around an earthing electrode at installation. Norton Power's graphite-based formulation is hygroscopic (it pulls and retains moisture from surrounding soil), non-corrosive (it doesn't degrade the electrode), and stable across seasonal variations.

Once activated with water during installation, the compound forms a gel-like layer that maintains conductivity even in dry months. This dramatically reduces the seasonal swing in earth resistance that plagues installations using salt and charcoal — an outdated approach that causes corrosion and demands periodic re-treatment. The Norton Power compound is environmentally neutral and meets landfill safety requirements.

Request a quote WhatsApp sales

Click to zoom

Features

Graphite-based formulation with natural earth minerals
Hygroscopic — retains moisture up to 20× its dry volume
Non-corrosive to copper, GI, and steel electrodes
Eliminates need for salt and charcoal (which corrode electrodes)
Stable resistance across seasonal moisture variation
Available in 5 kg and 25 kg packaging

Why choose Norton Power

Reduces electrode-to-soil resistance to consistently low values
Creates a uniform conductive zone surrounding the electrode
Maintains conductivity during dry months without retreatment
Environmentally safe — neutral pH, non-leaching, landfill-compliant
Extends electrode life by minimizing direct soil contact corrosion

Specifications

Primary material	Graphite with natural earth minerals
Form	Powder, mixed with water at installation
Moisture retention	Up to 20× dry volume
pH	Neutral
Corrosion effect	Non-corrosive to copper, GI, and steel
Packaging	5 kg and 25 kg bags
Shelf life	24 months in sealed packaging
Coverage	One 25 kg bag per standard 3-meter electrode pit

Standards compliance

IS 3043

Applications

All grounding installations using rod or pipe electrodes

Solar plant grounding (dry, sandy soil conditions)

Telecom tower foundations

Substation grounding grids

Lightning protection earth pits

Retrofit of poorly performing existing earth pits

Models & variants

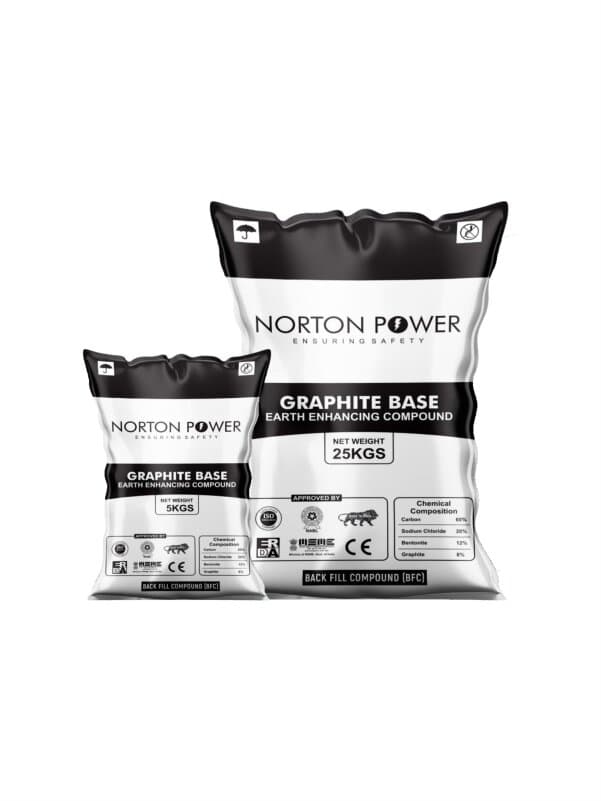

5 kg bag — Single small electrode
25 kg bag — Standard 3-meter electrode pit

Frequently asked questions

Why not just use salt and charcoal like older installations?

Salt corrodes the electrode — accelerating failure. Charcoal degrades within months and stops being conductive. Modern earth enhancing compounds eliminate both problems and require no retreatment.

How long does the compound last underground?

The compound is designed to remain effective for the full service life of the electrode (40+ years for copper bonded). It does not consume itself in operation — it provides a stable conductive matrix between electrode and surrounding soil.

Can I use this for an existing installation that's failing?

Yes. Excavate around the existing electrode, mix in the compound with displaced soil, repack, and water to activate. This is a common retrofit when older salt-and-charcoal pits stop performing.
