Pit Covers

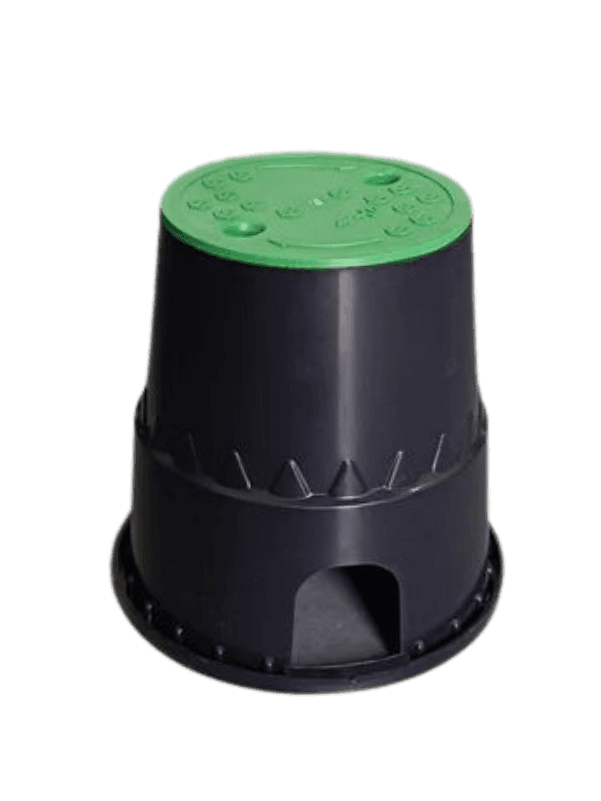

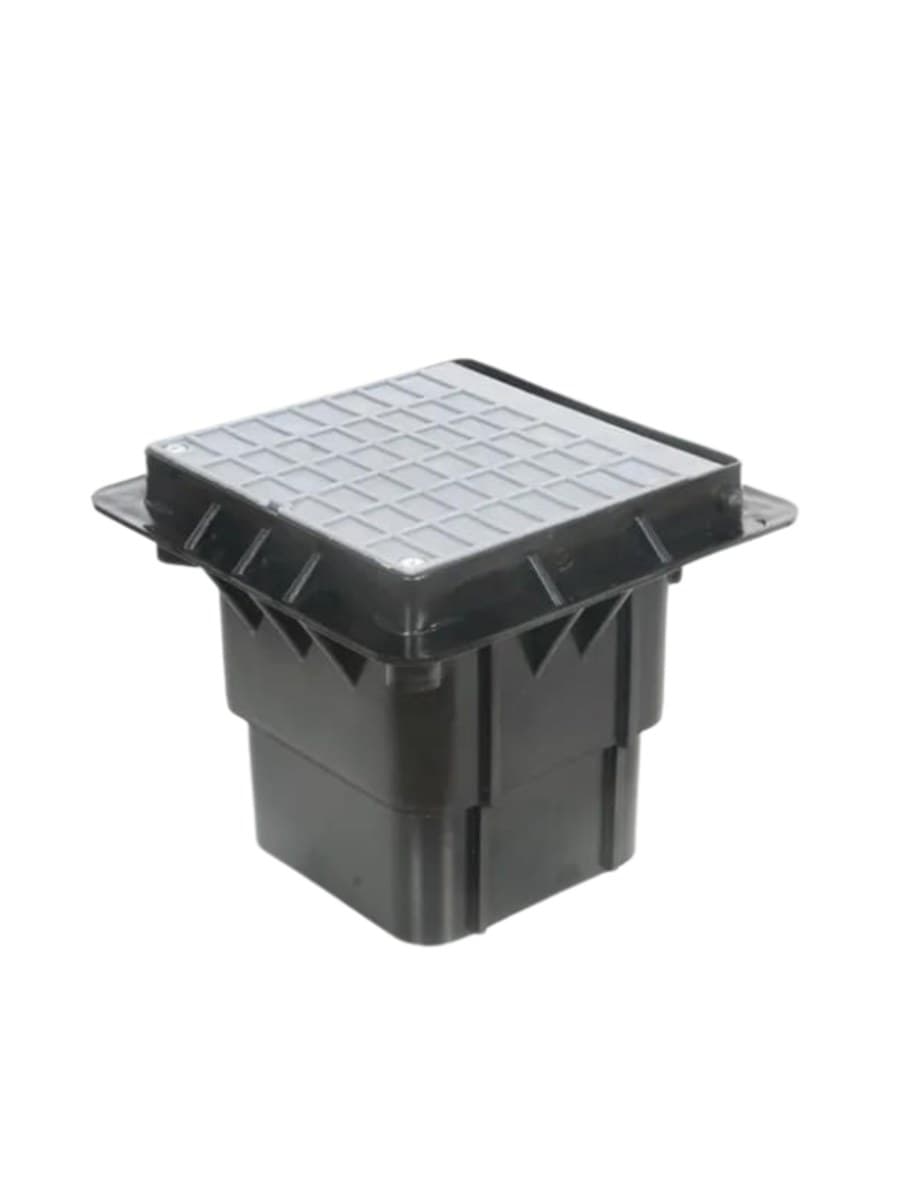

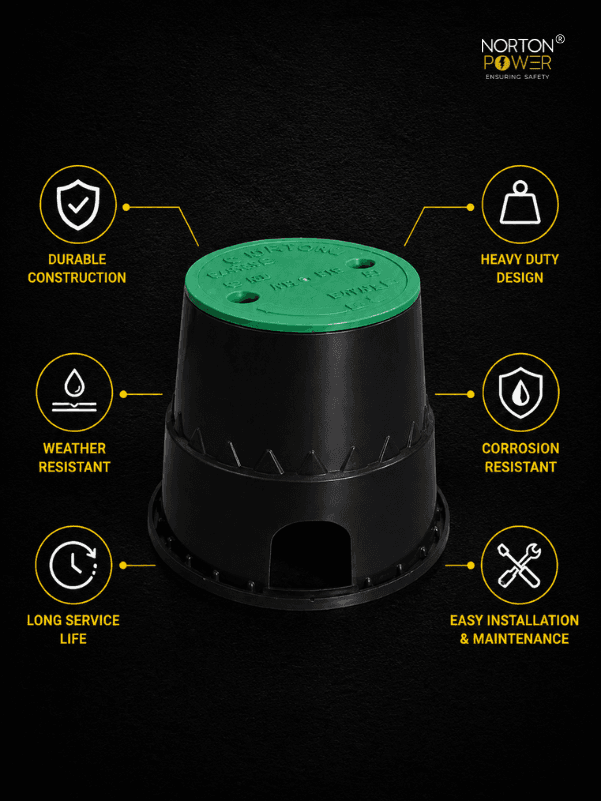

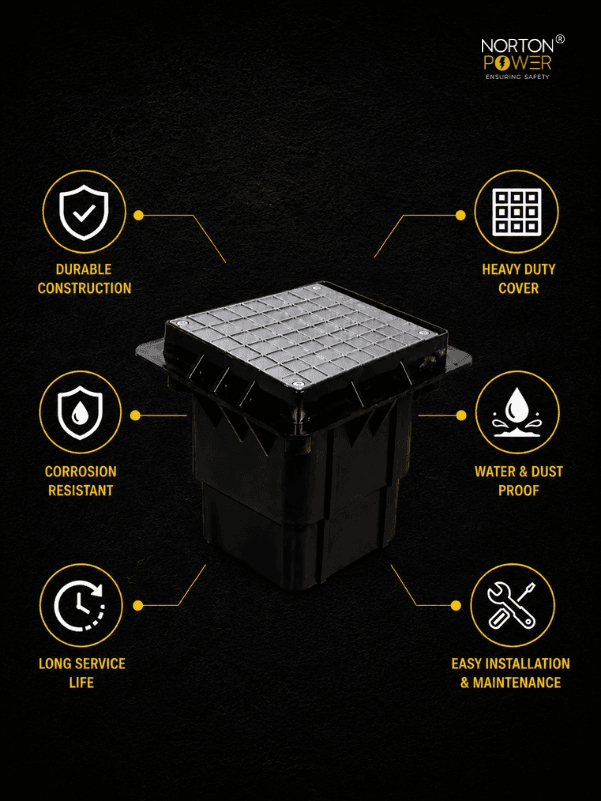

Earth-pit inspection covers in both square and round profiles — heavy-duty cast iron, GI, SMC and corrosion-proof polymer, with lockable lids for IS 3043 testing access.

An earth pit cover protects the inspection chamber where an earthing electrode is terminated — keeping the connection accessible for resistance testing while shielding it from damage, moisture, and casual tampering. Norton Power supplies pit covers in three material variants: cast iron (heavy duty, vehicular load), galvanized iron (medium duty, pedestrian areas), and SMC (Sheet Moulding Compound — lightweight, non-conductive, corrosion-proof).

Standard sizes match IS 3043 pit dimensions, with custom sizes available on request. Each cover ships with a frame designed to be set flush with finished ground level. SMC variants are increasingly specified for solar plants and substations where their non-conductive properties eliminate any risk of inadvertent step-potential at the cover itself.

Request a quote WhatsApp sales

Click to zoom

Features

Three material variants: Cast Iron (heavy duty), GI (medium duty), SMC (non-conductive)
Standard sizes match IS 3043 pit dimensions (300×300, 450×450, 600×600)
Custom sizes available on request
Frame designed for flush mounting at finished ground level
Recessed lifting handle, anti-skid top surface
Lockable variants available for high-security sites

Why choose Norton Power

Keeps earth pit connection accessible for IS 3043 mandated annual testing
Cast iron variant rated for vehicular load — safe in industrial driveways
SMC variant is non-conductive — eliminates step-potential risk at the cover itself
GI variant offers balance of cost and durability for general installations
Standard sizes interchangeable with existing pits during retrofit

Specifications

Material	Cast Iron, Galvanized Iron, SMC (Sheet Moulding Compound)
Standard Sizes Mm	300×300, 450×450, 600×600
Custom Sizes	Available on request
Frame Finish	Powder-coated or galvanized (steel variants), molded (SMC)
Load Rating	Cast Iron: A15 (pedestrian) to C250 (light vehicular)
Surface	Anti-skid pattern, recessed lifting handle

Standards compliance

IS 3043EN 124 (reference for load classification)

Applications

Earth pit inspection chambers (all electrode types)

Substations and switchyards

Solar PV plants (SMC variant preferred)

Industrial facilities and manufacturing sites

Commercial buildings and infrastructure projects

Lightning protection earth termination pits

Models & variants

Frequently asked questions

Which material should I choose for my pit cover?

Cast iron is the right choice where the cover may see vehicular load (driveways, industrial yards). GI is the standard choice for pedestrian areas and indoor installations. SMC is preferred for solar plants and high-voltage substations where its non-conductive properties remove any risk of step-potential at the cover.

Can I order a custom size?

Yes. Standard sizes (300×300, 450×450, 600×600 mm) are stocked; non-standard sizes are manufactured to order. Share your pit dimensions and we will quote.
